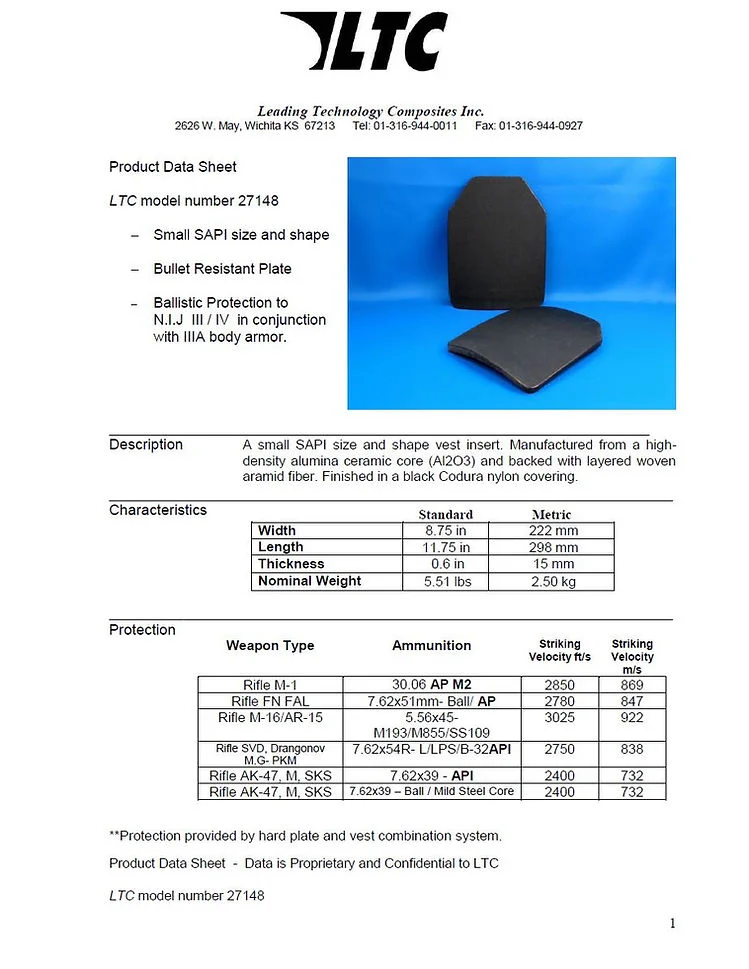

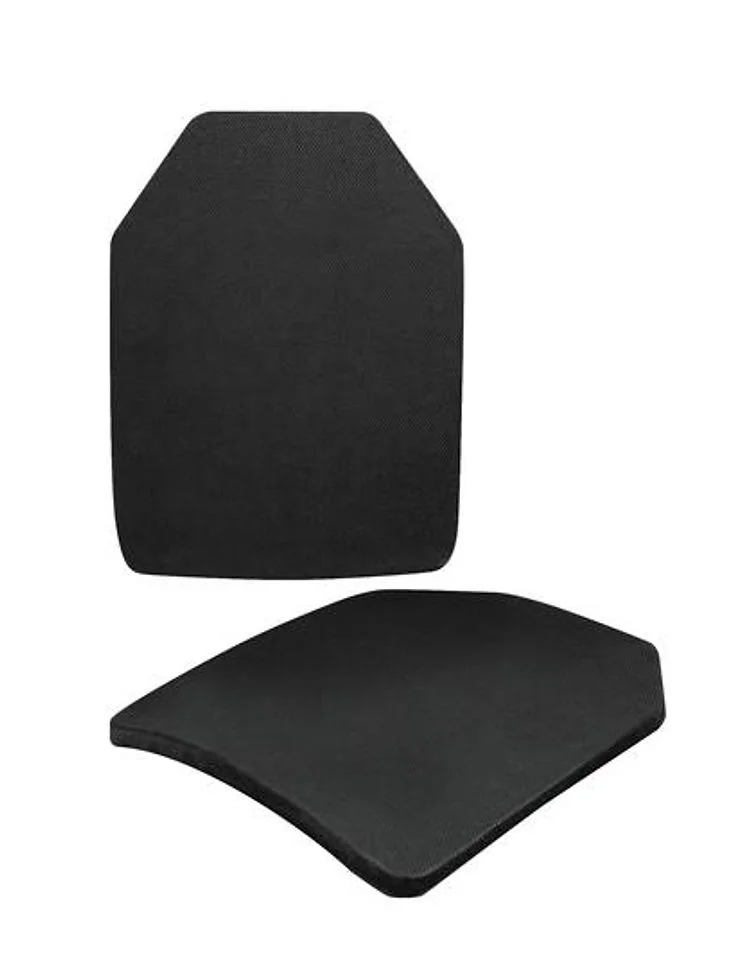

Two LTC 27148 Multi Curve Level 4 ICW Plates
- Sold as a pair
- NIJ 0101.04 certified
- Level IV ICW performance when paired with Level IIIA soft armor
- Multi-curve profile for improved body fit
Construction
- Alumina ceramic strike face
- Crack-arresting layer integrated
- Aramid backing material
- Approx. 0.6″ thickness
Impact behavior:
- Designed to absorb projectile energy
- Built for repeated high-threat impacts
Ballistic Capability (ICW Rating)
Rated when used with IIIA backer to withstand:
- .30-06 M2 AP
- 7.62x54R B32 API
- 7.62x51mm M61 AP
- M80A1
- M855A1
- 7.62×39 API
Standalone performance:
- Comparable to special-threat Level III+ rating
Available Sizes & Approximate Weights
- Small: 8.75” x 11.75” (≈ 5.51 lbs)
- Medium: 9.5” x 12.50” (≈ 6.46 lbs)
- Large: 10.25” x 13.25” (≈ 7.19 lbs)
- XL: 11” x 14” (≈ 7.51 lbs)
- 10×12 swimmer/shooter cut: ≈ 6 lbs
- 8×10 swimmer/shooter cut: ≈ 4.4 lbs
Specs Summary
- Level IV ICW rating
- 0.6″ nominal thickness
- Multi-hit configuration
- Ceramic-aramid composite build
Coverage Guarantee
Eligible for replacement under:
- Confirmed ballistic impact incident
- Natural disaster-related damage
Coverage includes:
- Armor plates
- Carriers and accessories purchased together
NEED A QUOTE?
Products are available for DOD, Federal, State and Local Government Agency ordering. ARCTOS cannot quote or fulfill personal orders.
